CNCTOPBAOS Electric Rotating Machine,Φ100mm Bearing Scale Optical Rotating Platform Motorized Rotation Stage,360° Precision Worm Gear Rotary Table Reduction Ratio 1/180 Load 99lb 45kg RA100
$325.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.junvelajewels.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$325.00
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.junvelajewels.com
Free 30-day returns Details
Product details
| Management number | 219310701 | Release Date | 2026/05/03 | List Price | $130.00 | Model Number | 219310701 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Introduction: This is a high-precision electric rotary machine that uses special technology worm gear transmission and imported ultra steel shaft to achieve high-precision,high load stable movement;Eccentricity: 10μm; Weight: 1.7kg; Load: 45kg/99lb

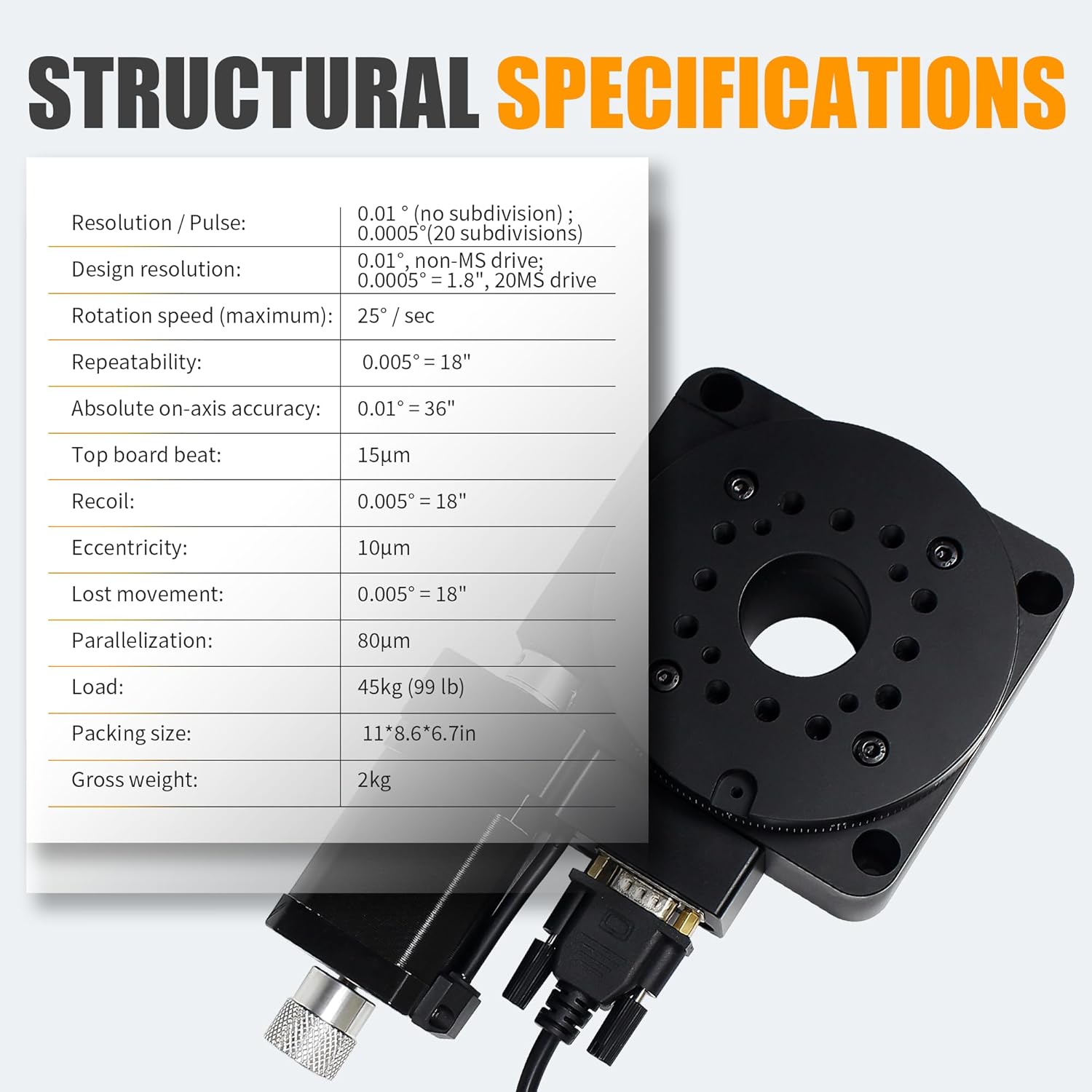

- Specifications: Travel:360°; Table size: Φ100mm; Transmission mode:Worm gear; Reduction ratio 1/180; Resolution/Pulse: 0.01° no subdivision; 0.0005°/20 subdivisions; Max. Rotation speed: 25° / sec; Repeatability: 0.005°; Top board beat: 15μm
- Materials: Aluminuam-black anodized; Guide rail: bearing; The turbine is made of high standard 94 copper as raw material, and the worm gear is made of 20CrMnti alloy structural steel, which is finely processed through carburization process

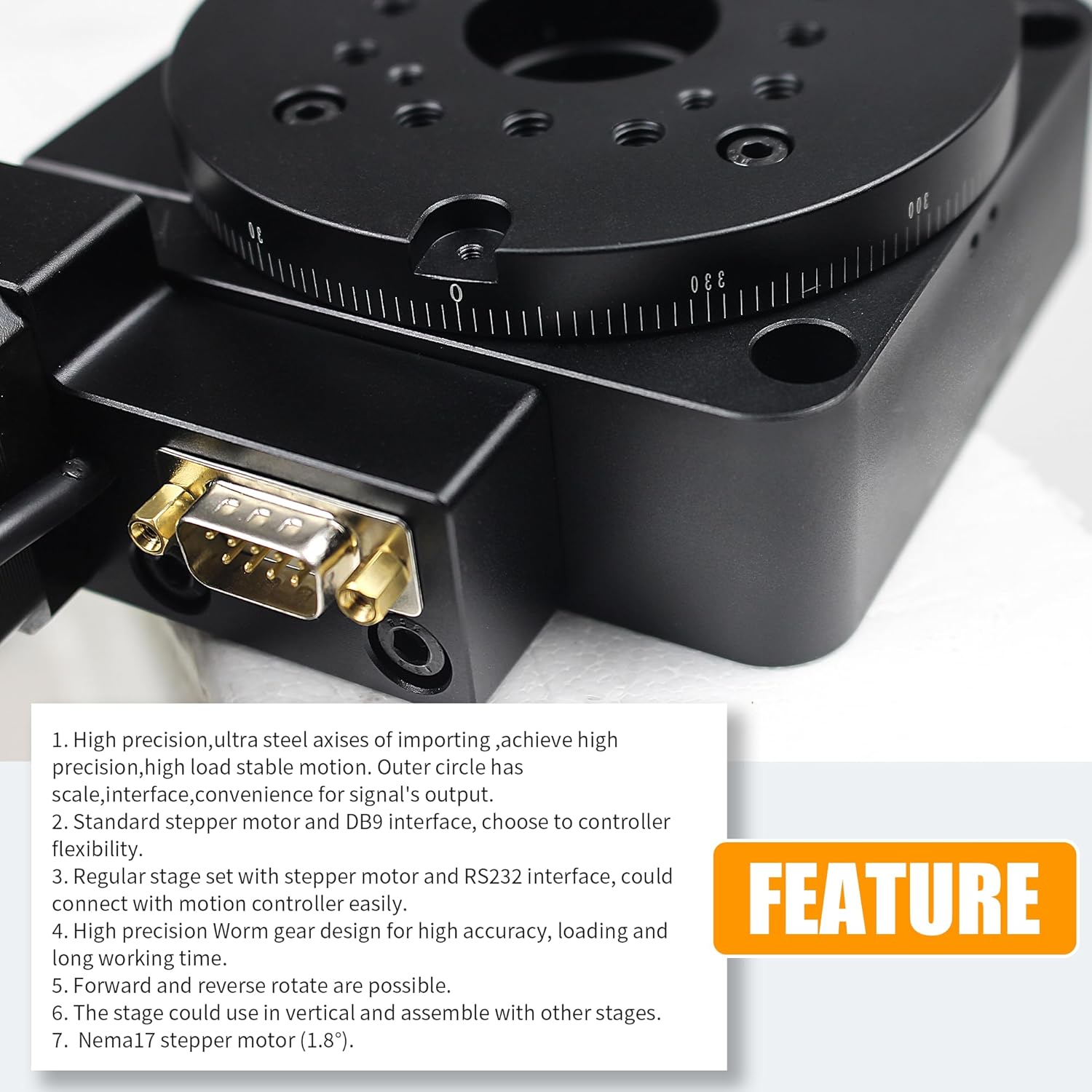

- Advantages: The countertop floor is finely ground to ensure static flatness, and the high-precision and high rigidity axis system ensures the coaxiality of the center through-hole and rotation center of the rotary table;Feature: The outer ring has characteristics such as scale,interface,and convenient signal output,high rotation accuracy,strong bearing capacity,and the motor and worm are connected by high-quality elastic couplings
- Functional: Standard stepper motor and DB9 interface,choose to controller flexibility;The RS232 standard port can be connected to 485 or 232 upper computer,which can achieve speed regulation and forward/reverse rotation;More functions: Worm gear optical rotating platform can add limit function and zeroing function;The stage could use in vertical and assemble with other stages;Scaling on the outerring of the platform,easy scale reading
- Widely Applications: This rotating platform is widely used in industrial automation and scientific experiments,used for precision machining,3D scanning measurement system etc
| Brand Name | CNCTOPBAOS |
|---|---|
| Unit Count | 1.0 Count |
| Item Weight | 4.8 Pounds |
| Part Number | TYRA100 |
| Bearing Type | Roller Bearing |
| Manufacturer | CNCTOPBAOS |
| Material Type | Aluminum |
| Bearing Number | TYRA100 |
| Item Thickness | 15 Micron |
| Outside Diameter | 100 Millimeters |
| Included Components | Rotating Platform Φ100mm |
| Compatible Lubricant | Grease |
